System fixed to aluminium sub-structure
The system requires two types of structures: an aluminium sub-structure and vertical elements to which a façade slab is fastened by means of certified adhesives.
System features:
- fastened to sub-structure with certified adhesives
- simple structure and low production costs
- entirely fitted on-site
- for buildings not exceeding 25 m in height
- for any thickness and format of elevation slabs
- for external use
- system operates in limited range of temperature and humidity
- fitted to aluminium support frame by means of adhesive systems, e.g. SIKA TACK PANEL.
Frame assembly
- WITHOUT FINISHING FRAME
- WITH OPEN FRAME
The assembly is based on aluminium profiles in vertical grouts and on vertical profiles of an aluminium framework with “ZS” locks fastened in vertical grouts.
System features:
- fastening large format slabs 6 mm+ thick
- slab fixed to the framework in production
- full control of the fixing process
- possible dismantling and re-installation of the elevation
- can be fitted regardless of weather conditions, all year round
- quick fastening of prefabricated elements
- no limitations on building height
WITHOUT FINISHING FRAME:
The slab is fixed to the aluminium frame with no visible fastening elements.

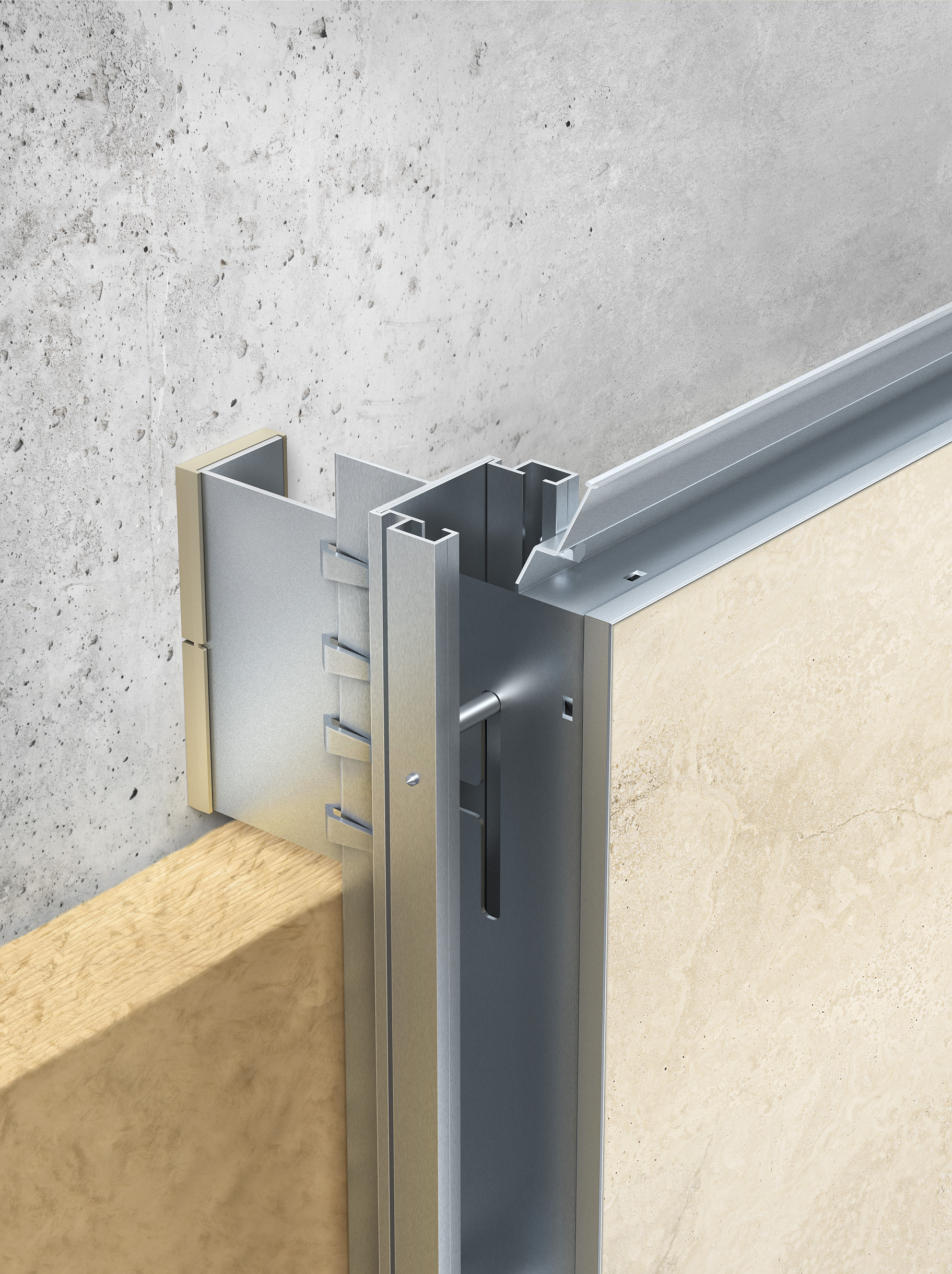

WITH OPEN FRAME:
The edge of the slab is hidden in the frame, offering extra mechanical protection and can serve as a decorative element. The frame also protects the slab from damage during transport and assembly..
